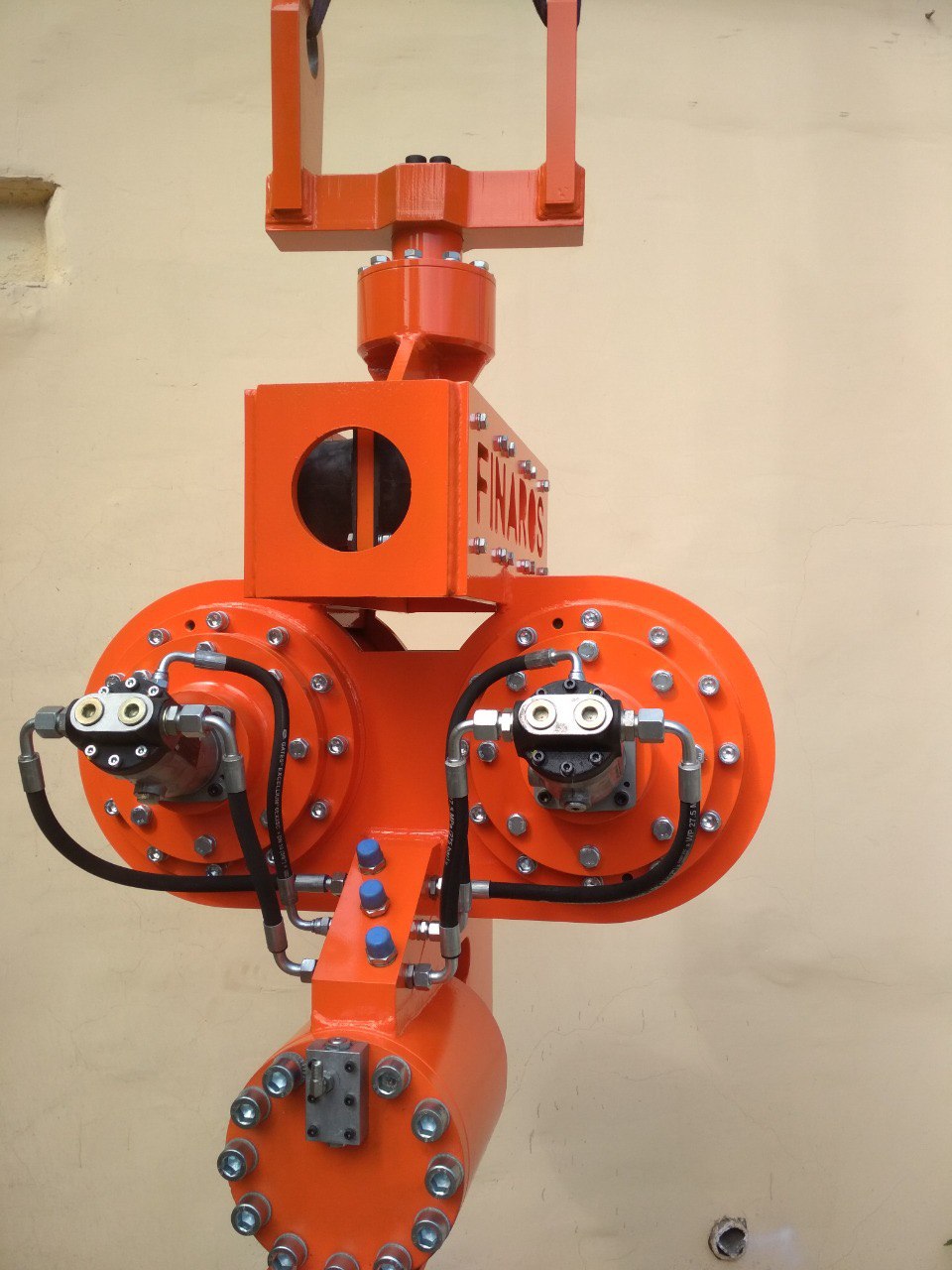

Hydraulic Pile Driver FR 400
FR 400 is a powerful pile driver which provided the possibility of immersing t-beams, Larsen, pipes, logs. This pile driver has a central clamp welded into the common housing.
ADVANTAGES:
The pile driver FR 400 has a construction similar to the well-known ICE 8 EMV vibratory pile driver, but it differs from ICE 8 EMV with a smaller mass and compact dimensions. In addition, unlike the ICE 8 EMV, our FR 400 vibratory pile driver can be used not only on excavators, but also on cranes with a lifting capacity of 10 tons thanks to the design of the built-in damper.
There is also a model of the FR 400 with removable hydraulic clamps. Replaceable hydraulic clamps are used for piling of wooden logs and pipes. The pile driver FR 400 can be connected to a hydraulic system of the excavator 20 - 30 tons or to a hydro power station with a capacity of 60 kW.

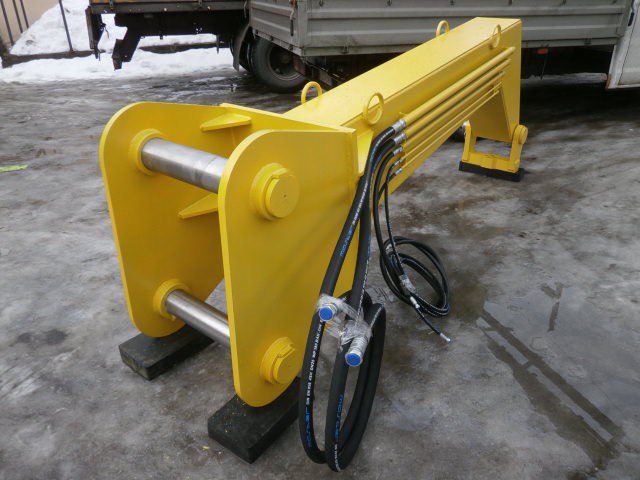

FR 400 pile driver can be mounted on a crane, excavator. or a drilling machine.
Vibro Hammer Technical Data and Montage
| Data Name | Value |
|---|---|
| Dynamic Weight (including clamping device), kg | 806 |
| Rates Eccentric Speed, RPM | 2160 |
| Rated Frequency, Hz | 36 |
| Eccentric Moment, kN.m | 77.1 |
| Centrifugal Force, kN (t) | 401.8 (40.9) |
| Amplitude Maximum, mm | 9.75 |
| Rated Fluid Flow, LPM | 120 |
| Fluid Work Pressure, bar | 250 |
| Hydraulic Fluid, recommended types | mineral oils HL, HLP, HVLP ISO 32 |
| Hydraulic Fluid Temperature Range, °C | -20...+60 |
| Clamp Force, kN (ton) | 442 (45) |
| Puling Force Maximum (to pulling element), kN (t) | 40 (4) |
| Piling Element Weight Maximum, kg | 2500 |
| Immersion Depth for Beams and Piles, m | up to 12 |
| Immersion Depth for Pipes, m | up to 10 |

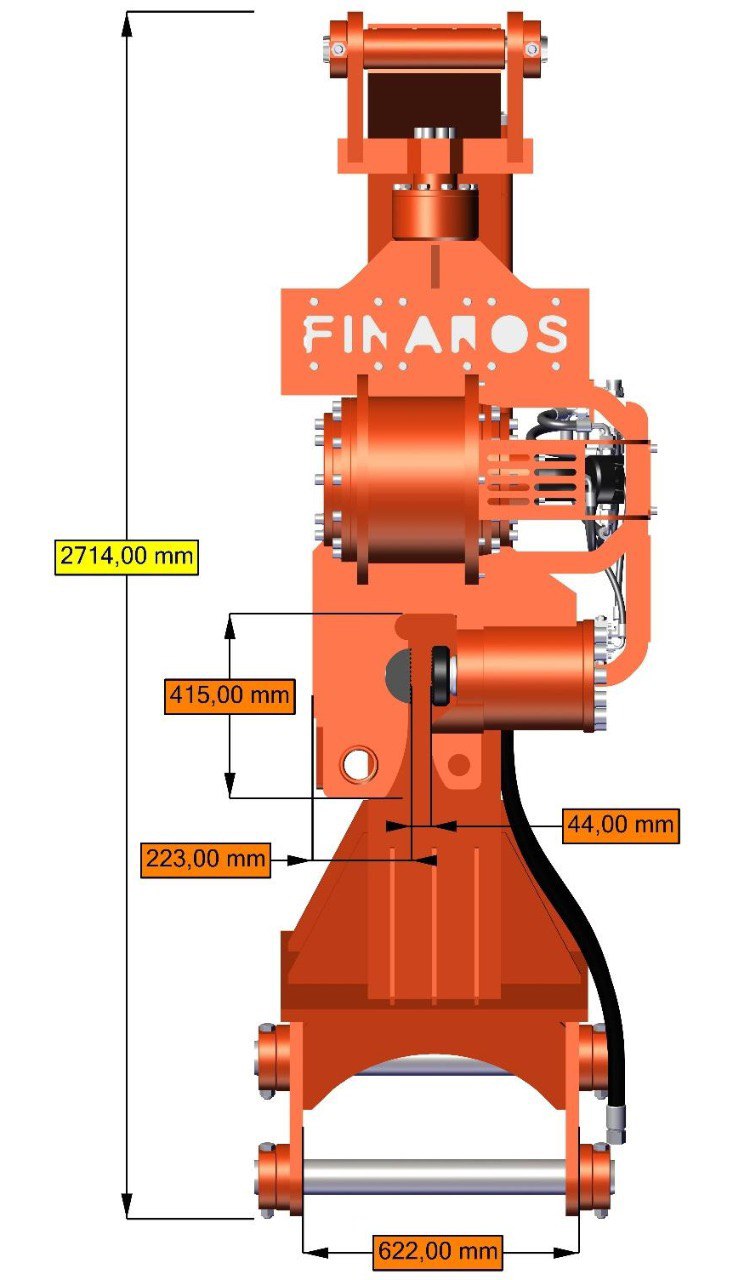

| Transport Overall Dimensions (protection incl.) LWH, cm | 1767x966x790 |
| Total Weight of Pile Driver (protection shell incl.), kg | 950 |
